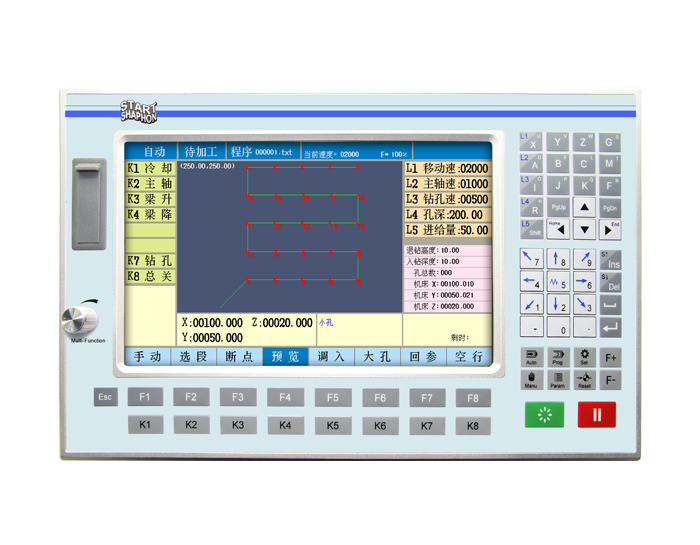

CZ-X3 CNC Drilling Controller


It's mainly used for drilling, broaching, reaming on overlong lamination/carling/steel structure/tube-type piece in industries of automobile/shipbuilding/aerospace/engineering machinery

Drilling/broaching/reaming/tapping

Automobile/shipbuilding/aerospace/engineering machinery, for overlong lamination/carling/steel structure/tube-type piece

CZ-X3 Drilling Controller
CZ-X3 Drilling Controller
CZ-X3 Drilling Controller

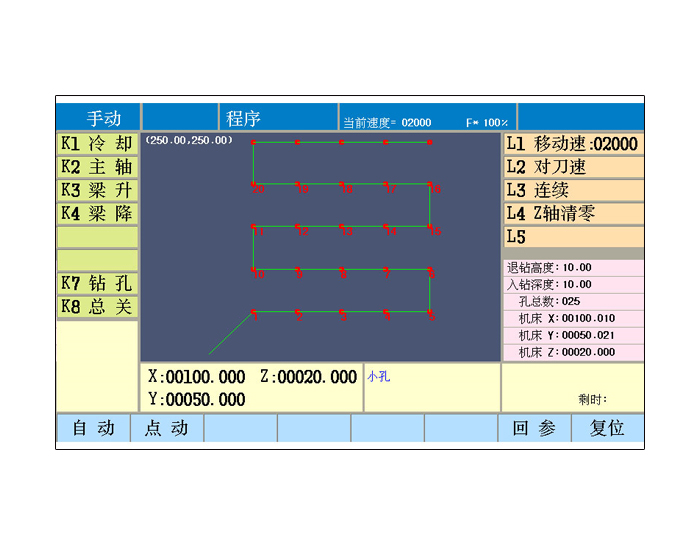

Move drilling torch/to reference point/reset/origin

CZ-X3 Drilling Controller
CZ-X3 Drilling Controller
CZ-X3 Drilling Controller
Processor Display Dimension Working Temperature Store Temperature
Industrial ARM processing chip 10.4,color 0℃ ～ 55℃ -40℃ ～ 60℃
No. of Linkage Axis AD/DA control precision communication
3 Axis 2*AD，2*DA 0.001 mm 2*RS232，1*RS485，1*USB
Pulse equivalent High speed count input I/O Control Store Space
electronic gear molecule, denominator setting range (1~65535). 2 way high speed count input, connecting 2 Road encoders input*24, output*24 4G
CZ-X3 CNC Drilling Controller assembly dimension diagram
CC-X3 assembly dimension diagram

The final interpretation rights belong to StatAi, and the above models and parameters are for reference only.
